Two stage Impactor confirm to USEPA design, sample collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom of WINS IMPACTOR
PM 10 Size Separator
Single stage impactor matching to European Design (According to EN 12341), sample collected on standard glass micro fiber filter paper of 47mm diameter.
: 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly.
Flow Rate (PM 2.5)
constant 1m3/hour unaffected by voltage fluctuation & filter chocking through critical orifice.
Flow Rate (PM 10)
constant 2.3m3/hour unaffected by voltage fluctuation and filter chocking through critical orifice
Flow Rate (GAS)
Four inlet & one outlet with needle valves for flow control of each unit through 0.3 to 3.0 LPM acrylic body rotameter
Independent Diaphragm gas meter for PM2.5 & PM10 record total air volume sampled with a accuracy of 200ml in each stream to measure air sampling flowrate & acrylic body Rotameter for gaseous pollutant
Clock / Timer System
Programmable Real Time control system with control of automatic start & stop of instrument
Size, Weight & Cabinet
Size : 610 X 180 X 425 Weight : Approximate 34 Kg, Cabinet : Two Part Modular, Corrosion free, lockable and easy to transport
Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage.
Up-to 28 hours continuously
0 to 9999.99 hours recorded on a digital time totalizer

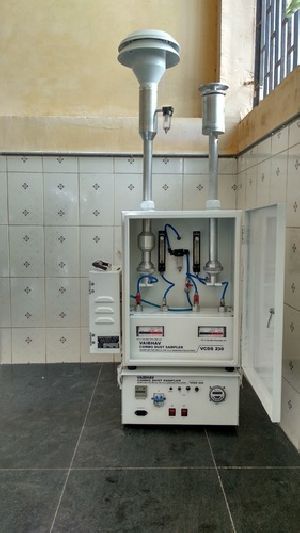

Four inlet and one outlet manifold with built in needle valve for flow control of each inlet. 4 Nos. of 35ml borosilicate glass Impingers for gaseous sampling
ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Min. Order Quantity
L/C, D/P, T/T
Special Features :
Sampling for PM10 & PM 2.5 dust are done at constant rate of 2.3m3/hr & 1m3/hr respectively, reduce filter chocking even in areas of high PM concentration
Simultaneous sampling of PM 10, PM 2.5, gaseous pollutant & heavy metals
Oil free, brushless & Less Noise diaphragm / Pistant pump assemblies are immune to voltage fluctuation & require zero maintenance.
Suitable for outdoor use with corrosion free lockable housing. Design to work in all weatehr condition
Sampler can run continuously upto 24 hours as per Guidelines.
Filter Holder is design to accept any standard 47 mm dia filter which reduce the operating cost
Compact, portable & simple to operate with user friendly features
Compact and easy to handle due to reduction in weight.
Two part of cabinet and fitment of filter holder in the sampler are such so it remain suspended in air and remain close to ambient temperature at all the time even heat of motor fitted in lower cabinet of the sampler.
