Velocity Samplers


Product Details

Product Code VVS 14
Min. Order Quantity 1 Set(s)
Port AHMEDABAD Ex. Works
Payment Terms L/C, D/P, T/T
Delivery Time Ready Stock
Packaging Details Standard Packing in Plastic Coated Hard Board with Inside Armor Sheet Protection and Bubble Roll Layer On Instrument
Size Customised
Type Air Velocity Meter
Brand Name VAIBHAV
Material Aluminum
Color White background with outer black
Usage Measurement of Air Velocity from Duct & Chimney
Automatic Grade Manual
Display Local
Warrenty 14 MONTH
Density 1
Power MECHANICAL DEVICE

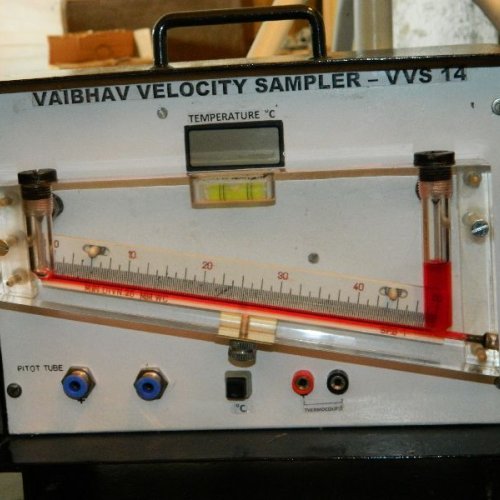

VAIBHAV VELOCITY SAMPLER VELOCITY KIT
Product Name Velocity Meter / Sampler
Warranty 14 Month
Weight 950 grms
Production Capacity 230 Pcs
measure both pressure and air velocity read the figures directly in mmh2o of air at standard conditions. Read the black figures in milimeter of water column air pressure - from 0 to 50 mmh2o. Our most popular precision air velocity instrument is used to balance air conditioning systems, measure pressure drop across filters.

special features
  • compact , portable & easy to operate & handle
  • accurate and reliable readings
  • no threaded coupling & manual pressure cell

Yes! I am interested


Vaibhav Velocity Sampler - VVS-5
Send Enquiry

Product Details

Product Code VVS 5
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, T/T
Delivery Time READY STOCK
Packaging Details Standard Packing in Plastic Coated Hard Board with Inside Armor Sheet Protection and Bubble Roll Layer On Instrument
Brand Name Vaibhav
Usage Measurement of Air Velocity from Duct & Chimney
Density 1
Power 9 Volt DC
Stack Temperature Range Ambient to 600 Degree Centigrade
Stack Velocity Range 3.0 to 60.0 meter/second
Pitot Tube Calibration S type, Fabricated from SS 304 having standard length of 750mm with 750mm extension, optional length of pitot available on request.
Thermocouple K Type Thermocouple having 750 meter insertion length made from SS 304 with 2.0 Mtr extension cable & suitable connector is provided
Warranty 14 Month
Digital Manometer A digital Manometer (Differential Pressure Indicator) having measurement range from 0 – 1300 mmH2O, having least count 0.1 mmH2O
Colour Black
Weight 950 GM
Display Type Digital
Production Capacity 100 Set

VAIBHAV velocity meter VSS5 is provided with a digital pyrometer and thermocouple for measurement of temperature. A digital pressure cell is incorporated in a hand held unit for the measurement of press in mm of H2O directly along with pitote tube. The pitot tube has been provided with an extendable arm for easy transportation.

Special Features :

  • Suitable for measurement of high velocity as 100m/second
  • Carrying case for easy handling
  • No threaded coupling
  • Digital pressure cell
  • Compact, Portable & Easy to Operate & Handle
  • Gives high accurate and reliable readings
