Fine Dust Samplers
Leading Manufacturers, Exporters, Wholesaler, Retailer of Fine Dust Sampler (PM 2.5 SAMPLER) - VFDS 113, Fine Dust Sampler (PM 2.5 SAMPLER) - VFDS-104 Mini and Fine Dust Sampler (PM 2.5 SAMPLER) - VFDS-113EL from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Dust Samplers, FINE PARTICULATE SAMPLER (PM 2.5 SAMPLER) |
| Weight | 20-30kg |
| Voltage | 220V |
| Condition | New |
| Power Source | 230 VAC 50 Hz |
| Features | Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design |
| Warranty | 14 MONTHS |
| Display | Ananlog |
| Flow Rate | Constant 1m3/hour (16.7 LPM) unaffected by voltage fluctuation and filter chocking through critical orifice |
| Automation Grade | Manual |
| Brand Name | VAIBHAV |
| Usage | PM2.5 (FPM), PM10(RSPM) & Gaseous Pollutant Sampling |
| Production Capacity | 200 SET FOR THE YEAR |
| Weight ( in kg) | APPROXIMATE 27 KG |
| Color | WHITE |
| Brand | VAIBHAV EQUIPMENT SERVICE |
| Material | AUMINIMUM |
| Airflow | 1 M3/HSR - 16.67LPM |
| Energy Consumption | SINGLE PHASE , 220V AVC, 2 AMP, |
| PM 2.5 Size Separator | Two stage Impactor confirm to US EPA design, Omni directional air inlet with PM 10 separation through an impactor followed by PM 2.5 separation through WINS impactor |
| Filter Media | 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly. |
| Flow Meter | Dry Gas Meter record the total air volume sampler with a accuracy of 200 ML |
| Clock / Timer System | Programmable Real Time control system with control of automatic start & stop of instrument |
| Dimension & Weight | 300mm X 280mm X 800mm, Approximate 25 Kg |
| Power Requirement | Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory |
| Operation | Up-to 28 hours continuously |
| Time totalizer | 0 to 9999.99 hours recorded on a digital time totalizer |
| Vacuum Pump | Oil free non pulsating pump driven by induction motor for stable flow rate |
| WARRANTY | ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY |
| Product Code | VFDS-113 |
| Port | EX WORK AHMEDABAD |
| Payment Terms | L/C, D/P, T/T |
| Delivery Time | READY STOCK |
| Packaging Details | STANDARD PACKING IN PLASTIC COATED HARD BOARD WITH INSIDE ARMOR SHEET PROTECTION AND BUBBLE ROLL LAYER ON INSTRUMENT |
SPECIAL FEATURES
- Design and Developed as per US EPA published standard designs.
- Meets the requirement of Pollution Control Board for Fine Dust Sampling
- Accurate Particulate Sample Collection of PM 2.5 / PM10
- User friendly & having low operating cost
- Compact, Portable, Easy to Operate & Handle
- Arrangement for Parallel Gaseous Sample Collection
- Filter holders fitting in the sampler are done such so that these are remain suspended in air & thus not affected by heat of motor fitted in lower cabinet of the sampler
- Maintenance free Suction assembly, No maintenance required
- Design to runs continuously more than 24 hours or more at constant flow rate of 1m3/hour, this lower rate reduce filter chocking even in area of high FPM Level
- Suitable for Outdoor Use, Corrosion free lockable housing for wins impactor and filter holder
- Filter Holder is design to accept any standard 47mm diameter filter.
- Same instrument can used for PM10 and PM2.5 Sampling
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Dust Samplers, FINE PARTICULATE SAMPLER (PM 2.5 SAMPLER) |
| Weight | Approximate 20 Kg |
| Voltage | 220V |
| Condition | New |
| Features | Durable, Eco Friwndly, Fine Finished, Precise Design |
| Warranty | 14 MONTHS |
| Display | Ananlog |
| Flow Rate | Constant 1m3/hour unaffected by voltage fluctuation and filter chocking through critical orifice |
| Automation Grade | Manual |
| Brand Name | VAIBHAV |
| Usage | Air Sampling And Environmental Monitoring |
| Power | AC |
| Power Supply | 220 VAC |
| Color | Gray, White |
| Suitable for | Outdoor Use, Corrosion free lockable housing for wins impactor and filter holder |
| Material | Auminimum |
| Airflow | 1 M3/hour -(16.67lpm) |
| Energy Consumption | 220 Vac, 50hz, 5amp |
| PM 2.5 Size Separator | PM 2.5 WINS Impactor confirm to USEPA design |
| PM 10 Size Separator | EPA Omni-directional ambient particle inlet with 10μ separation assembly & sample transport tube confirm to USEPA design. |
| Filter Media | 47 mm Filter in a Filter Cassette housed in Filter Holder assembly. |
| Flow Meter | Dry Gas Meter record the total air volume sampler with a accuracy of 200 ML |
| Clock / Timer System | Programmable Real Time control system with control of automatic start & stop |
| WARRANTY | ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY |
| Product Code | VFDS 104 |
| Port | EX WORK AHMEDABAD |
| Payment Terms | L/C, D/P, T/T |
| Delivery Time | READY STOCK |
| Packaging Details | Standard Packing in Plastic Coated Hard Board with Inside Armor Sheet Protection and Bubble Roll Layer On Instrument |
Special Features :
- Design and Developed as per USEPA published standard designs.
- Accurate Particulate Sample Collection of PM 2.5 / PM10
- User friendly having low operating cost
Compact , Portable & Easy to Operate & Handle - Arrangement for Parallel Gaseous Sample Collection
- Maintenance free Suction assembly, No maintenance required
- Design to runs continuously 24 hours or more at constant flow rate of 1m3/hour
- Filter Holder is design to accept any standard 47 mm dia filter.

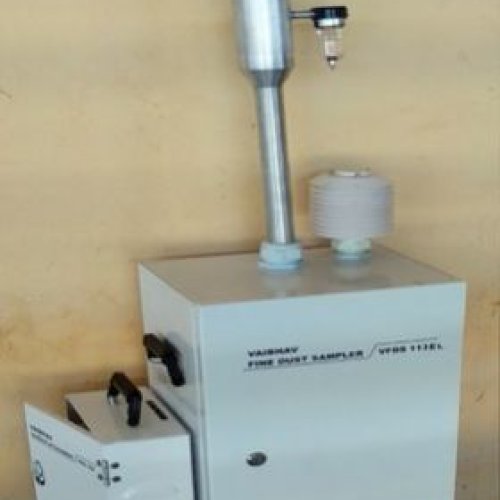

| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Dust Samplers, FINE PARTICULATE SAMPLER (PM 2.5 SAMPLER) |
| Weight | Approximate 25 Kg |
| Voltage | 220V |
| Condition | New |
| Features | Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design |
| Display | Ananlog |
| Automation Grade | Manual |
| Brand Name | Vaibhav |
| Usage | Pm 2.5 Sampling With Data Logging Facility - Air Sampling - Environmental Monitoring |
| Power | Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. |
| Power Supply | 220 VAC |
| Suitable for | Outdoor Use, Corrosion free lockable housing for wins impactor and filter holder |
| Production Capacity | 500 Set Per Year |
| PM 2.5 Size Separator | Two stage Impactor confirm to USEPA design, sample collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom of WINS IMPACTOR |
| PM 10 Size Separator | Single stage impactor matching to European Design (According to EN 12341), sample collected on standard glass micro fiber filter paper of 47mm diameter. |
| Filter Media | 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly. |
| Flow Rate | Constant 1m3/hour unaffected by voltage fluctuation and filter chocking through electronically controlled critical orifice |
| Time Totalizer : | RTC based record the operating time for each sample in hours and minute |
| Volumatric Flow Rate compensation : | Performed automatically by logger using sensor for Ambient Temperature, Barometric Pressure and filter pressures |
| Flow Totalizer : | Automatically volume totalized using sample flow & running time in minute |
| Parameter Recording | :Dual Internal & External memory based system record all the parameters |
| Auto Operation | Auto shutoff if flow rate drops by more than 10 % from set value of 1m3/hr |
| Software | Data can be save in CSV or Excel format which can easy access in any operating system |
| Operation | Up-to 28 hours continuously |
| Portable Calibrated Unit | Dry Gas Meter calibrated the sample volume and flow rate with a accuracy of 200 ML |
| WARRANTY | ALL VAIBHAV PRODUCT’S CARRY 14 MONTH WARRANTY |
| Product Code | VFDS 113EL |
| Port | EX WORK AHMEDABAD |
| Payment Terms | L/C, T/T |
| Delivery Time | READY STOCK |
| Packaging Details | Standard Packing in Plastic Coated Hard Board with Inside Armor Sheet Protection and Bubble Roll Layer On Instrument |
Special Features :
- Microprocessor based controller maintain constant air sampling rate of 16.7 LPM(1m3/Hr.)
- Microcontroller based data logger display and record Air & Filter temperature, Filter & Barometric Pressure, Flow rate, Air volume sampled
- Programmable timer to auto start and stop sampling
- Data can be exported to PC in Excel format using pen drive
- Compact , Portable, Easy to Operate & Handle
- Arrangement for Parallel Gaseous Sampling
- Large alpha numerical LCD display
- Dual data recording, internal and in easy removable memory stick
- Auto shut off facility if flow rate falls below 1m3/hr, due to filter chocking & as per programmable parameter like Temperature, Pressure etc..
- Filter holders fitting in the sampler are done such so that these are remain suspended in air & thus not affected by heat of motor fitted in lower cabinet of the sampler, filter temperature records are available
- Filter Holder is design to accept any standard 47 mm diameter filter.
- Design to runs continue 24 hours or more at constant flow rate of 1m3/hr
- Display values of all parameters are upgraded every 30 seconds
- User friendly design having low operating cost, Pump assembly is brushless and noiseless
- PM 2.5 impactor is developed as per USEPA published standard design,
- Meets the requirement of Pollution Control Board for Fine Dust Sampling
- Sample can be used for Accurate Particulate Sample Collection of PM2.5 / PM10 dust monitoring gravimetrically
