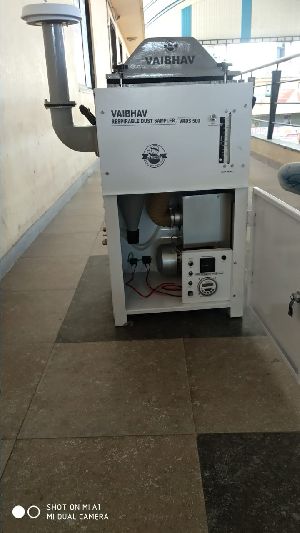

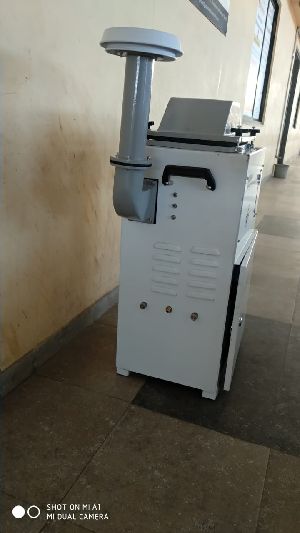

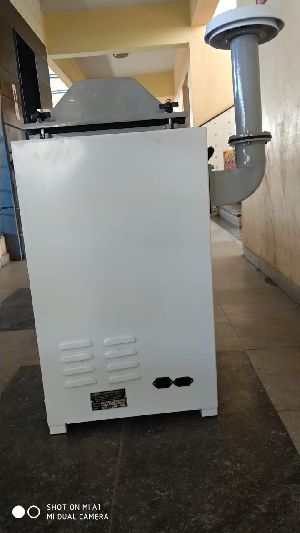

Product Details
| Type | Respirable Dust Sampler |
| Weight | 30 Kg |
| Voltage | 220V |
| Condition | New |
| Features | Durable, Eco Friwndly, Fine Finished, Precise Design |
| Warranty | ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY |
| Display | Ananlog |
| Flow Rate | Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter |
| Automation Grade | Manual |
| Brand Name | VAIBHAV |
| Power | AC |
| Basic features | Heavy duty brushless belt driven almost maintenance free & zero consumable blower |
| Particulate Sampling | D50 cutoff cyclonic separator separate 10micron down to 0.1micron(depending upon filter). A cyclone is used for fractionating dust into two fractions. RSPM(<10μm ) are accumulate on filter paper |
| Filter Holder | Fine finished power coated fabricated from aluminum casting having zero leakage / leak proof through rubber gasket at all joints to accommodate any standard filter paper of 20.3cm x 25.4cm |
| Filter Media | 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM2000 or equivalent for special monitoring / research work |
| IS Reference | Match the requirement prescribed in BIS 5182(Part-23) 2006 for particulate matter collection |
| Timer Recorder | 0.00 to 99999.99 hrs. time totalizer records the running time in hours |
| Clock / Timer | Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time |
| Sampling Time | As per user choice and upto 30 hours maximum for single operation |
| Power Requirement | Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory |
| Dimension | Approximately 410mm X 300mm X 700mm |
| Particle Size | Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles |
| Construction | The body of RDS is robust enough to withstand impacts and vibration in transportation, it is made of heavy aluminum sheet. |
| Night View | Provision has been made for light in the sampler for taking reading during dark area and in night hours |
| Hardware | Only SS 304 corrosion free hardware are used in sampler for assembling |
| Make | VAIBHAV EQUIPMENT SERVICE – AHMEDABAD |
Additional Information
| Product Code | VRDS 500 |
| Min. Order Quantity | 1 Set(s) |
| Port | EX WORK AHMEDABAD |
| Payment Terms | L/C, D/P, T/T |
| Delivery Time | READY STOCK |
special features
modular design for easy operation
drain plug for manometer fluid leveling
sturdy aluminum construction with ss hardware
low noise during operations
less variation in flow even chocking of filter
maintenance free suction assembly
totally eliminated of emi
compact, portable, easy to operate-transport & handle
arrangement for parallel gaseous sampling
light provision for working in night & dark area
design to runs continuously 24 hours or more
common body (housing) structure for all the model which will easy converted to any of the below model
suitable for outdoor use, corrosion free lockable housing
.
