Respirable Dust Samplers


Product Details

Product Code VRDS 500DxNL
Port AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time READY STOCK
Type Respirable Dust Sampler, RESPIRABLE DUST SAMPLER
Weight 45 Kg
Voltage 220V
Condition New
Features Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty 14 MONTHS
Display Digital, ANALOG (OPTIONAL)
Flow Rate Free flow more than 1.5 m3/min without filter paper and with flow stabilization is disable. 1.0 m3/min with filter paper installed and flow stabilization controller enabled
Automation Grade Fully Automatic
Brand Name VAIBHAV
Power AC
Special Feature Design as per Indian standard BIS 5182(Part 23):2006,digital flow indicator & volume totalizer, waterless manometer eliminate filling of distilled water & maintaining zerolevel in glass manometer tube
Special Feature.. Electronic flow controller, Sampling flow will maintain the pre set level even during filter chocking, ampere and voltage variation, instrument will auto shut if flow vary from set flow & time limit.
Digital Manometer Digital display of manometer flow on 16 character, 2 line LCD display. Flow indication in two digit with 3 decimal places & volume tantalization indication in five digit with 2 decimal place.
Auto Zero of Volume By pressing single key volume will be auto zero
Particulate Sampling 10 micron down to 0.1 micron (depending upon type of filter used). A cyclone is used for fractionating the dust into two fractions, D-50 cutoff for the cyclone is at 10 microns.
Particulate Sampling.. RSPM is accumulated on the filter paper (8”X10” size) while coarse dust is collected in a cup placed under the cyclone
Filter Holder To accommodate any standard filter paper of 20.3cm x 25.4cm (8inchX10inch) in size, particulate bigger than 10 micron collected in separate dust cap under the cyclone
Filter Media 8inch X 10inch (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM 2000 or equivalent for special monitoring / research work
IS Reference Match the requirement prescribed in BIS 5182(Part-23) 2006
Time Recorder 0 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time 30 hours (maximum)
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension Approximately 410mm X 300mm X 700mm
Particle Size Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction The body of RDS is robust enough to withstand impacts and vibration in transportation, it is made of heavy aluminum sheet.
Night View Provision has been made for light in the sampler for taking reading during dark area and in night hours
Hardware Only SS corrosion free hardware used in sampler
Flow Control The system will automatically maintain the flow rate constant and compensate for dust load deposited on the filter.
Flow Control.. When dust load increases beyond the capacity of the blower the flow rate will begin to decrease and the system will automatically be shutdown if the flow rate tends to drop below 15% of pre set level
Suction Blower.. Multi bladed impeller revolves at a very high speed in a specially designed stator cum compression chamber ensuring very fine clearance between them
Suction Blower... The impeller is fitted directly onto a bearing mounted shaft of a superior quality flanged electric motor. 100 % oil free required zero lubrication

special features


 confirm to bis 5182 (part 23) : 2006 standard


 sampling flow rate will maintain automatic at pre set level even during filter chocking, ampere & voltage variation with electronic feedback controller


 digital manometer with volume totalizing (waterless manometer, no need of filling and adjusting zero lever with distilled water)


 digital manometer eliminated glass manometer tube brakeage & water evaporation during sampling


 flow will be readout upto to three decimal place.


 provide sample volume in at any stage of sampling on display


 sturdy aluminum construction with ss hardware...

Read More...


Yes! I am interested


Respirable Dust Sampler - VRDS-500NL
Send Enquiry

Product Details

Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms T/T
Delivery Time READY STOCK
Packaging Details Standard Packing in Hard Board with Armor Sheet Protection Having Bubble Roll Layer in Instrument
Type Respirable Dust Sampler
Weight 41 kg
Voltage 220V
Condition New
Power Source Electricity
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Display Ananlog
Flow Rate 1-1.5m3
Automation Grade Semi Automatic
Brand Name Vaibhav
Power AC Single Phase Ac Supply
Airflow 0.9 to 1.4 cubic meter per minute
Dimension (L*B*H in mm) 410 X 300 X 700
Production Capacity 500 Set Per year
Warranty 14 MONTH

Special Features :

  • Brushless & belt less almost maintenance free & zero consumable noise less turbine blower,
  • Modular design for easy operation
  • Drain plug for manometer fluid leveling
  • Sturdy aluminum construction with SS hardware
  • Low Noise during operations
  • Less variation in flow even chocking of filter
  • Totally eliminated of EMI
  • Compact, Portable, Easy to Operate-Transport & Handle
  • Arrangement for Parallel Gaseous sampling
  • Light provision for working in night & dark area
  • Design to runs continuously 24 hours or more
  • Castor provide easy internal movement
  • Common Body (Housing) structure for all the model which will easy converted to any of the below model
  • Suitable for Outdoor Use, Corrosion free lockable housing

Yes! I am interested

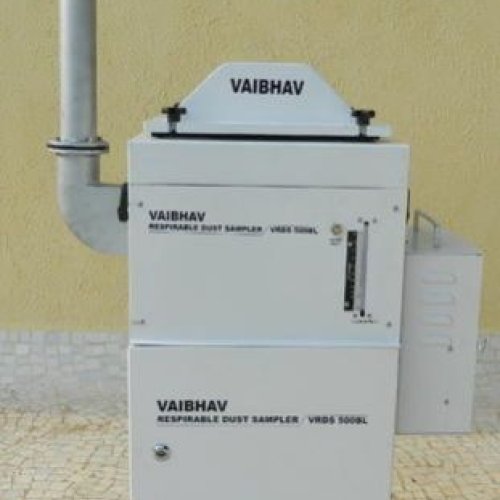

Respirable Dust Sampler - VRDS-500BL
Send Enquiry

Product Details

Product Code VRDS 500BL
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, T/T
Delivery Time READY STOCK
Packaging Details Standard Packing in hardboard box with Inner Armor Sheet Packing and Bubble Roll Layer On Instrument
Type Dust Samplers, FINE PARTICULATE SAMPLER (PM 2.5 SAMPLER)
Weight 20-30kg
Voltage 220V
Condition New
Power Source 230 VAC 50 Hz
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty 14 MONTHS
Display Ananlog
Flow Rate Constant 1m3/hour (16.7 LPM) unaffected by voltage fluctuation and filter chocking through critical orifice
Automation Grade Manual
Brand Name VAIBHAV
Usage PM2.5 (FPM), PM10(RSPM) & Gaseous Pollutant Sampling
Production Capacity 200 SET FOR THE YEAR
Weight ( in kg) APPROXIMATE 27 KG
Color WHITE
Brand VAIBHAV EQUIPMENT SERVICE
Material AUMINIMUM
Airflow 1 M3/HSR - 16.67LPM
Energy Consumption SINGLE PHASE , 220V AVC, 2 AMP,
PM 2.5 Size Separator Two stage Impactor confirm to US EPA design, Omni directional air inlet with PM 10 separation through an impactor followed by PM 2.5 separation through WINS impactor
Filter Media 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly.
Flow Meter Dry Gas Meter record the total air volume sampler with a accuracy of 200 ML
Clock / Timer System Programmable Real Time control system with control of automatic start & stop of instrument
Dimension & Weight 300mm X 280mm X 800mm, Approximate 25 Kg
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Operation Up-to 28 hours continuously
Time totalizer 0 to 9999.99 hours recorded on a digital time totalizer
Vacuum Pump Oil free non pulsating pump driven by induction motor for stable flow rate
WARRANTY ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY

Special Features :

  • Modular design for easy operation
  • Drain plug for manometer fluid leveling
  • Sturdy aluminum construction with SS hardware
  • Low Noise during operations
  • Less variation in flow even chocking of filter
  • Maintenance free Suction assembly
  • Totally eliminated of EMI
  • Compact, Portable, Easy to Operate-Transport & Handle
  • Arrangement for Parallel Gaseous sampling
  • Light provision for working in night & dark area
  • Design to runs continuously 24 hours or more
  • Castor provide easy internal movement
  • Common Body (Housing) structure for all the model which will easy converted to any of the below model

Yes! I am interested


Product Details

Product Code VRDS 500EBL
Min. Order Quantity 1 Set(s)
Port AHMEDABAD
Payment Terms L/C, D/P
Delivery Time READY STOCK
Type Respirable Dust Sampler
Weight 50 kg
Voltage 220V
Condition New
Power Source AC
Features Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Display Digital
Flow Rate Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter,
Automation Grade Fully Automatic
Brand Name VAIBHAV
Power AC
Basic features Brush less belt driven almost maintenance free & almost zero consumable blower, electronic digital manometer in place of glass manometer, digital flow indicator & volume totalizer (Digital Manometer),
Particulate Sampling 10micron down to 0.1micron(depending upon filter used) A cyclone is used for fractionating the dust into 2 fractions, D50 cutoff for cyclone is at 10microns. RSPM is accumulated on the filterpaper
Filter Holder To accommodate any standard filter paper of 25 x 20 cm, particulate bigger than 10 micron collected in separate dust cap under the cyclone
Filter Media 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM 2000 or equivalent for special monitoring / research work
IS Reference Match the requirement prescribed in BIS 5182(Part-23) 2006
Timer Recorder 0 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time 30 hours (maximum) for single sampling
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension Approximately 410mm X 300mm X 700mm
Particle Size Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction The body of RDS is robust enough to withstand impacts and vibration in transportation; it is made of heavy aluminum sheet.
Night View Provision has been made for light in the sampler for taking reading during dark area and in night hours
Hardware Only SS corrosion free hardware used in sampler
Digital Display 16 character, 2 line LED display with 5 key operation

SPECIAL FEATURES

 Digital Manometer with volume totalizing (Waterless manometer, no need of filling and adjusting zero lever with distilled water)

 Provide Sample volume in m3 at any stage of sampling on display

 Modular design for easy operation

 Sturdy aluminum construction with SS hardware

 Glass manometer tube brakeage during transportation & water evaporation is eliminated due to digital manometer

 Low Noise during operations

 Less variation in flow even chocking of filter

 Totally eliminated of EMI

 Compact, Portable, Easy to Operate-Transport & Handle

 Arrangement for Parallel Gaseous sampling

 Light provision for working in night & dark area

 Design to runs continuously 24 hours or more

 Castor provide easy internal movement

 C...

Read More...


Yes! I am interested


Product Details

Product Code VRDS 500ENL
Min. Order Quantity 1 Set(s)
Payment Terms L/C, D/P
Delivery Time READY STOCK
Type Respirable Dust Sampler
Weight 58 Kg
Voltage 220V
Condition New
Features Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Display Digital
Flow Rate Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter
Automation Grade Semi Automatic
Brand Name VAIBHAV
Power AC
Basic features Brushless & belt less almost maintenance free & zero consumable noise less turbine blower, electronic manometer in place of glass manometer, digital flow indicator & volume totalizer, Digital Manomete
Particulate Sampling 10micron down to 0.1micron (depending upon filter used). A cyclone is used for fractionating the dust into 2 fractions, D50 cutoff for the cyclone is at 10microns. RSPM is accumulated on the filter
Filter Holder To accommodate any standard filter paper of 25 x 20 cm, particulate bigger than 10 micron collected in separate dust cap under the cyclone
Filter Media 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM 2000 or equivalent for special monitoring / research work
IS Reference Match the requirement prescribed in BIS 5182(Part-23) 2006
Timer Recorder 0 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time 30 hours (maximum)
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension Approximately 410mm X 300mm X 700mm
Particle Size Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction The body of RDS is robust enough to withstand impacts and vibration in transportation; it is made of heavy aluminum sheet.
Night View Provision has been made for light in the sampler for taking reading during dark area and in night hours and
Hardware Only SS corrosion free hardware used in sampler

special features

  • digital manometer with volume totalizing (waterless manometer, no need of filling and adjusting zero lever with distilled water)
  • provide sample volume in m3 at any stage of sampling
  • modular design for easy operation
  • sturdy aluminum construction with ss hardware
  • glass manometer tube brakeage and water evaporation were eliminated due to digital manometer
  • low noise during operations
  • less variation in flow even chocking of filter
  • maintenance free noiseless suction assembly
  • totally eliminated of emi
  • compact, portable, easy to operate-transport & handle
  • arrangement for parallel gaseous sampling
  • light provision for working in night & dark area
  • design to runs continuously 24 hours or more
  • castor provide easy internal moveme...

Read More...


Yes! I am interested


Product Details

Product Code VRDS 500
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time READY STOCK
Type Respirable Dust Sampler
Weight 30 Kg
Voltage 220V
Condition New
Features Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Display Ananlog
Flow Rate Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter
Automation Grade Manual
Brand Name VAIBHAV
Power AC
Basic features Heavy duty brushless belt driven almost maintenance free & zero consumable blower
Particulate Sampling D50 cutoff cyclonic separator separate 10micron down to 0.1micron(depending upon filter). A cyclone is used for fractionating dust into two fractions. RSPM(<10μm ) are accumulate on filter paper
Filter Holder Fine finished power coated fabricated from aluminum casting having zero leakage / leak proof through rubber gasket at all joints to accommodate any standard filter paper of 20.3cm x 25.4cm
Filter Media 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM2000 or equivalent for special monitoring / research work
IS Reference Match the requirement prescribed in BIS 5182(Part-23) 2006 for particulate matter collection
Timer Recorder 0.00 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time As per user choice and upto 30 hours maximum for single operation
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension Approximately 410mm X 300mm X 700mm
Particle Size Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction The body of RDS is robust enough to withstand impacts and vibration in transportation, it is made of heavy aluminum sheet.
Night View Provision has been made for light in the sampler for taking reading during dark area and in night hours
Hardware Only SS 304 corrosion free hardware are used in sampler for assembling
Make VAIBHAV EQUIPMENT SERVICE – AHMEDABAD

special features

 modular design for easy operation

 drain plug for manometer fluid leveling

 sturdy aluminum construction with ss hardware

 low noise during operations

 less variation in flow even chocking of filter

 maintenance free suction assembly

 totally eliminated of emi

 compact, portable, easy to operate-transport & handle

 arrangement for parallel gaseous sampling

 light provision for working in night & dark area

 design to runs continuously 24 hours or more

 common body (housing) structure for all the model which will easy converted to any of the below model

 suitable for outdoor use, corrosion free lockable housing

.


Yes! I am interested




Contact Now

+91-9429570743

Looking for Product Name ?
