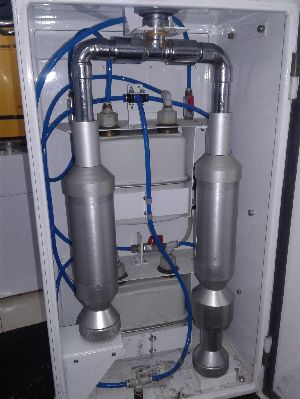

Combo Dust Sampler - VCDS 329

Quick Contact

VAIBHAV EQUIPMENT SERVICE

Mr. PRITESHKUMAR VINODKUMAR SHAH

5, Chintamani Society, Ramnagar, Sabarmati, Sabarmati, Ahmedabad, Gujarat - 380005, India

+91-9427380743



special features

  • sampler for simultaneous sampling of pm10 and pm2.5 particulate with single inlet
  • design and developed as per us epa published standard designs.
  • meets the requirement of pollution control board for fine dust sampling
  • accurate particulate sample collection of particulate
  • user friendly & having low operating cost
  • compact , portable, easy to operate & handle
  • arrangement for parallel gaseous sample collection
  • filter holders fitting in the sampler are done such so that these are remain suspended in air & thus not affected by heat of motor fitted in lower cabinet of the sampler
  • maintenance free suction assembly, no maintenance required
  • design to runs continuously more than 24 hours or more at constant flow rate of 1m3/hour, this lower rate reduce filter chocking even in area of high fpm level
  • suitable for outdoor use, corrosion free lockable housing for wins impactor and filter holder
  • filter holder is design to accept any standard 47 mm diameter filter.
  • oil free, brushless & less noise induction motor driven pump assembly is immune to voltage fluctuation require zero maintenance

Specifications

Type Dust Samplers, COMBO DUST SAMPLER
Weight Approximate 29 Kg
Voltage 220V
Condition New
Power Source Electricity
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty 14 MONTH
Display Ananlog
Flow Rate PM2.5 & PM10 at a constant 1m3/hr unaffected by voltage fluctuation and filter chocking through critical orifice.Gaseous Pollutant–4inlet & 1 outlet with needle valves for flow control of each unit
Automation Grade Manual
Brand Name VAIBHAV
Usage AMBIENT AIR SAMPLING
Power AC
Power Supply 220 VAC
Certificate CALIBRATION CERTIFICATE
Color WHITE
PM 2.5 Size Separator Two stage Impactor confirm to USEPA design, sample collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom of WINS IMPACTOR
PM 10 Size Separator Single stage Impactor confirm to USEPA design, sample collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom.
Filter Media 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly
Flow Meter Independent Diaphragm gas meter for PM 2.5 & PM 10 record the total air volume sampled with a accuracy of 200 ML in each stream & acrylic body rotameter for gaseous pollutant sampling
Clock / Timer System Programmable Real Time control system with control of automatic start & stop of instrument
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage.
Operation Up-to 28 hours continuously
Time totalizer 0 to 9999.99 hours recorded on a digital time totalizer

Additional Information

Product Code VCDS 320
Min. Order Quantity 1 Set(s)
Port AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time READY STOCK
