Handy Dust Samplers


Handy Dust Sampler - VHS 23T
Send Enquiry

Product Details

Product Code VHS 23T
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms D/P, T/T
Delivery Time READY STOCK
Packaging Details Standard Packing Hard Board with Armor Sheet Protection and Bubble Roll Layer On Instrument
Type Handy Dust Sampler
Condition New
Power Source Batteries
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty 14 Month
Display Digital
Automation Grade Fully Automatic
Production Capacity 50 SET
Brand Name Vaibhav
Material Aluminium Alloy
Accuracy (millimetre) 2% FSD
Automation Type Automatic
Phase DC Supply
Operating Voltage DC Supply
Length 230MM
Width 120MM
Height 120 mm
SUCTION PUMP UNIT Built in diaphragm type
FLOW RATE Absolute maximum free flow is more than 3.0 LPM
SAMPLING FLOW RATE 0.5LPM - 2.5 LPM with two glass Impinger
WEIGHT About 1800 gm
BATTERY 6.0 Volt DC, 5.0 Ah rechargeable
CHARGING TIME Approximate 15 – 18 hours
FLOW INDICATOR Acrylic body rotameter ranging from 0.0 to 3.0 LPM, having 0.1 lpm graduation, all SS fitting like flow controller, back and bottom nozzle, & Ball type SS float
SAMPLING TRAIN Consisting of 4 No. 35 ml Impinger
DIGITAL TIMER Power - Battery Operated, 4 digit Red LED Running Time – 1 – 999.9 minute Delay time 1- 99.9 minute
OPERATION TIME Cover complete shift duty, say more than 8 Hrs. with full recharge
WARRANTY ALL VAIBHAV PRODUCT’S CARRY 14 MONTH WARRANTY

Special Features :

  • Digital Timer to Facilitate unattended operation
  • Compact, Handy, portable & simple to operate with user friendly features
  • Maintain Sampling Rate throughout the sampling period.
  • Oil free, brushless, Less Noise Induction motor driven pump require zero maintenance.
  • Can be used as secondary suction device for Analyzer
  • Filter Holder is design to accept any standard 25mm dia filter
  • Sample can run several hours on rechargeable maintenance free battery

Yes! I am interested


Handy Dust Sampler - VHS-23HF
Send Enquiry

Product Details

Product Code VHS 23HF
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time READY STOCK
Packaging Details Standard Packing in Wooden Box with Inside Armor Sheet Packing and Bubble Roll Layer On Instrument
Type Handy Dust Sampler
Weight 0-10kg
Voltage 220V
Condition New
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished
Warranty 14 Month
Display Ananlog
Flow Rate 15 LPM
Automation Grade Manual, Semi Automatic
Production Capacity 50 SET
Minimum Order Quantity 1 Set
Brand Name Vaibhav
Material Aluminium Alloy
Automation Type Semi-Automatic
Handle Material Aluminium
Model VHS 23HF
Phase DC SUPPLY
Application Air Sampling, Process Vent Sampling, Shop Floor Sampling,
Operating Voltage 12 VDC
Length 250mm
Width 310mm
Connection Voltage DC SUPPLY, FOR BATTERY CHARGING 220 VAC,
Height 250mm
SUCTION PUMP UNIT Built in diaphragm type
FLOW RATE Absolute maximum free flow is more than 15.0 LPM
SAMPLING FLOW RATE 0.5LPM - 10 LPM with four glass Impinger
DIMENSION (LXBXH) 250mm X 310mm X 250mm
WEIGHT About 3500 gm with battery
BATTERY 12.0 Volt DC, 7.5 Ah rechargeable
CHARGING TIME Approximate 15 – 18 hours
SAMPLING TRAIN Consisting of 4 No. 120ml Impinger
OPERATION TIME Cover complete shift duty, say more than 8 Hrs. with full recharge
FLOW INDICATOR Acrylic body rotameter ranging from 0.0 to 15.0 LPM, having 1.0 lpm graduation, all SS fitting like flow controller, back and bottom nozzle, & BFall type SS float
DIGITAL TIMER Power - Battery Operated, 4 digit Red LED Running Time – 1 – 999.9 minute Delay time 1- 99.9 minute
WARRANTY ALL VAIBHAV PRODUCT’S CARRY 14 MONTH WARRANTY

Special Features :

  • Sampler can run more than 12 hours on rechargeable maintenance free battery with 4 Nos. of 120ml glass impinger
  • Compact, Handy, portable & simple to operate with user friendly features
  • Digital Timer to Facilitate unattended operation
  • Maintain Sampling Rate throughout the sampling period.
  • Oil free, brushless, Less Noise Induction motor driven pump require zero maintenance.
  • Can be used as secondary suction device for Analyzer
  • Filter Holder is design to accept any standard 25mm dia filter

Yes! I am interested

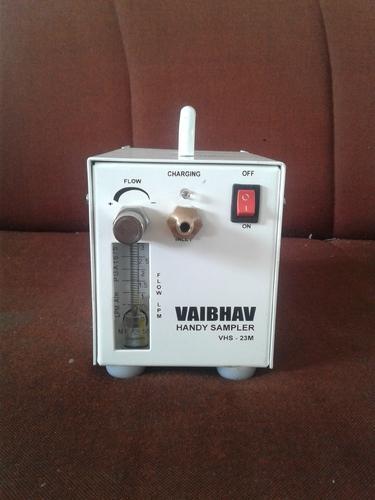

Handy Dust Sampler - VHS-23M
Send Enquiry

Product Details

Product Code VHS 23M
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time READY STOCK (EX-STOCK)
Packaging Details Standard Packing in Wooden Box with Inter Protection of Armor Sheet & Bubble-roll Layer On Instrument
Type Handy Dust Sampler
Condition New
Power Source Electronic
Features Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty 14 MONTHS
Display Ananlog
Automation Grade Manual
Brand Name Vaibhav
Material Auminimum
Weight ( in kg) 950 GM
Dimension (L*B*H in mm) 125mm X 80mm X 100mm
Airflow More Than 3 Lpm with Impinger
Energy Consumption Runs On 6v Battery
SUCTION PUMP UNIT Built in diaphragm type
FLOW RATE Absolute maximum free flow is more than 3.0 LPM
SAMPLING FLOW RATE 0.5LPM - 2.5 LPM with two glass Impinger
CHARGING TIME Approximate 15 – 18 hours
FLOW INDICATOR Acrylic body rotameter ranging from 0.0 to 3.0 LPM, having 0.1 lpm graduation, all SS fitting like flow controller, back and bottom nozzle, & Ball type SS float
SAMPLING TRAIN Consisting of 3 No. 35 ml Impinger
OPERATION TIME Cover complete shift duty, say more than 8 Hrs. with full recharge
WARRANTY ALL VAIBHAV PRODUCT’S CARRY 14 MONTH

Special Features :

  • Small, Handy, Portable & works several hours on Rechargeable Maintenance Free battery
  • Can be used as secondary suction device for Analyzer
  • Maintain Sampling Rate throughout the sampling period.
  • Oil free, brushless, Less Noise Induction motor driven pump require zero maintenance.
  • Suitable for outdoor use with corrosion free housing.
  • Filter Holder is design to accept any standard 25mm dia filter

Yes! I am interested
