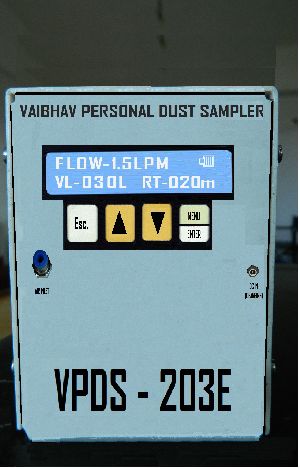

PERSONAL DUST SAMPLER - VPDS 203E

Quick Contact

VAIBHAV EQUIPMENT SERVICE

Mr. PRITESHKUMAR VINODKUMAR SHAH

5, Chintamani Society, Ramnagar, Sabarmati, Sabarmati, Ahmedabad, Gujarat - 380005, India

+91-9427380743



SPECIAL FEATURES

 Microprocessors based datalogger having recording & digital indication on display like Flow, Volume, Battery life, Sample Runtime etc.

 Recorded data can retrieve using SD card / PAN drive in simple .CSV format

 Display values of all parameters are upgraded every 30 seconds

 Easy flow control & Flow indication

 Runs on Battery for full shift duty say for continuous 8 Hours, also runs on mains supply Instrument is calibrate with National traceable Standard

 Sampler is Rugged, Light Weight, Portable & Easy to carry for monitoring

 Operate on Maintenance Free Rechargeable Li-ion Battery, LED Indication for Battery Charging with full charge cut off indication

 Programmable timer to auto start and stop for sampling in continuous or cyclic mode


Specifications

Datalogger Flow Totalizer : Automatically volume totalized using sample flow & running time in minute
Housing Cabinet : ABS Cabinet having hands free wrist holding clamp for instrument and caller clip for filter holder holding, Weight : 600 gm. Approx. Dimension (LBHmm) : 80 X 85 X 100
Filter Holder Capable to hold 25mm Dia Filter with O Ring for Protection of Air Leakage
Operation Time Runs continuous one shift duty say more than 8 hour on fully charge Battery, operating time settable from 0 to 999 minutes for automatic stop after the set time
Battery 7.4V Maintenance Free Rechargeable Li-Ion Battery
Charging Time 12 – 14 Hours
Electronic Display Display : 32 character (16 Character X 2 line) alpha-numeric LCD Module Key for Operation : 5 Key, (Esc., UP, Down, Menu, Enter), Flow : 0.0 to 5.0 LPM Volume : 0.1 to 9999 Liters ( auto ranging ),
Charger 8.0 VDC 500 mAh battery charging from 100 V to230 V AC 10%, 50/60 Hz
Sampling Mode Continuous or Cyclic
Sampling Medium Medium : Filter Paper Dia : 25mm
Suction Device Motor - RPM : 2800 Power : 6VDC Load : 310mA Pump - Type : Diaphragm Type Suction : 400mmHg, Flow : >3LPM
Standard Supply with Instrument Instrument VPDS 203E, Charger, 25mm Dia. Filter Holder, Silicon Tube, Caller Clip, Hard Carrying case, Belt, Filter-01 Nos., Operational Manual, Calibration Certificate,
Optional Accessories (order with instrument) 1. Filter Holder Plastic body for 25, 37 & 47 mm dia filter paper 2. Consumable like filter paper of different size 25, 23, 47mm dia 3. Charcoal tubing for adsorption of organic pollutant
WARRANTY ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY

Additional Information

Product Code VPDS 203E
Min. Order Quantity 1 Set(s)
Port EX WORK AHMEDABAD
Payment Terms L/C, D/P, T/T
Delivery Time 2 - 3 WEEK
