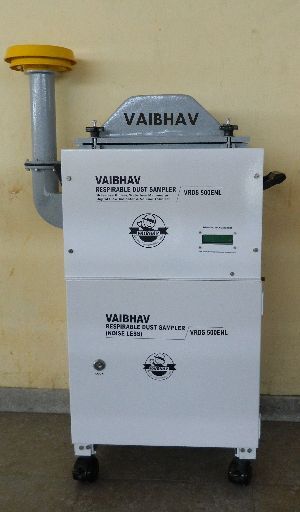

Respirable Dust Sampler VRDS 500ENL

Quick Contact

VAIBHAV EQUIPMENT SERVICE

Mr. PRITESHKUMAR VINODKUMAR SHAH

5, Chintamani Society, Ramnagar, Sabarmati, Sabarmati, Ahmedabad, Gujarat - 380005, India

+91-9427380743



special features

  • digital manometer with volume totalizing (waterless manometer, no need of filling and adjusting zero lever with distilled water)
  • provide sample volume in m3 at any stage of sampling
  • modular design for easy operation
  • sturdy aluminum construction with ss hardware
  • glass manometer tube brakeage and water evaporation were eliminated due to digital manometer
  • low noise during operations
  • less variation in flow even chocking of filter
  • maintenance free noiseless suction assembly
  • totally eliminated of emi
  • compact, portable, easy to operate-transport & handle
  • arrangement for parallel gaseous sampling
  • light provision for working in night & dark area
  • design to runs continuously 24 hours or more
  • castor provide easy internal movement
  • common body (housing) structure for all the model which will easy converted to any of the vrds 500 series model
  • suitable for outdoor use, corrosion free lockable housing

Specifications

Type Respirable Dust Sampler
Weight 58 Kg
Voltage 220V
Condition New
Features Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Display Digital
Flow Rate Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter
Automation Grade Semi Automatic
Brand Name VAIBHAV
Power AC
Basic features Brushless & belt less almost maintenance free & zero consumable noise less turbine blower, electronic manometer in place of glass manometer, digital flow indicator & volume totalizer, Digital Manomete
Particulate Sampling 10micron down to 0.1micron (depending upon filter used). A cyclone is used for fractionating the dust into 2 fractions, D50 cutoff for the cyclone is at 10microns. RSPM is accumulated on the filter
Filter Holder To accommodate any standard filter paper of 25 x 20 cm, particulate bigger than 10 micron collected in separate dust cap under the cyclone
Filter Media 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM 2000 or equivalent for special monitoring / research work
IS Reference Match the requirement prescribed in BIS 5182(Part-23) 2006
Timer Recorder 0 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time 30 hours (maximum)
Power Requirement Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension Approximately 410mm X 300mm X 700mm
Particle Size Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction The body of RDS is robust enough to withstand impacts and vibration in transportation; it is made of heavy aluminum sheet.
Night View Provision has been made for light in the sampler for taking reading during dark area and in night hours and
Hardware Only SS corrosion free hardware used in sampler

Additional Information

Product Code VRDS 500ENL
Min. Order Quantity 1 Set(s)
Payment Terms L/C, D/P
Delivery Time READY STOCK
