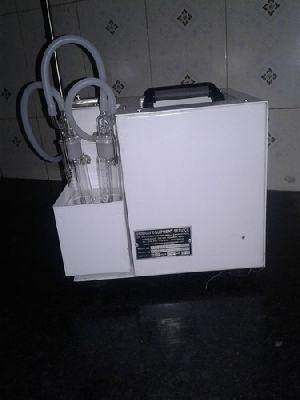

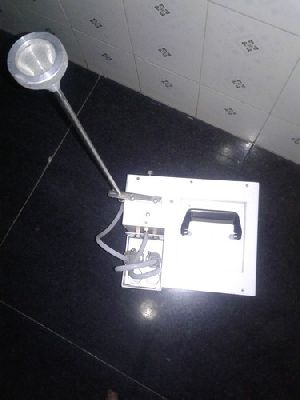

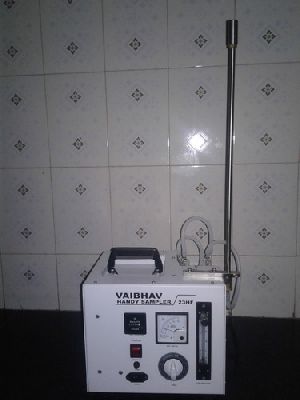

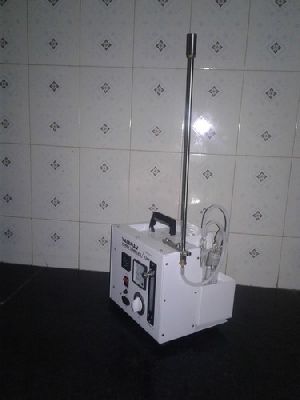

Handy Dust Sampler - VHS-23HF

Specifications

Type	Handy Dust Sampler
Weight	0-10kg
Voltage	220V
Condition	New
Features	Durable, Eco Friwndly, Fast Cleaning, Fine Finished
Warranty	14 Month
Display	Ananlog
Flow Rate	15 LPM
Automation Grade	Manual, Semi Automatic
Production Capacity	50 SET
Minimum Order Quantity	1 Set
Brand Name	Vaibhav
Material	Aluminium Alloy
Automation Type	Semi-Automatic
Handle Material	Aluminium
Model	VHS 23HF
Phase	DC SUPPLY
Application	Air Sampling, Process Vent Sampling, Shop Floor Sampling,
Operating Voltage	12 VDC
Length	250mm
Width	310mm
Connection Voltage	DC SUPPLY, FOR BATTERY CHARGING 220 VAC,
Height	250mm
SUCTION PUMP UNIT	Built in diaphragm type
FLOW RATE	Absolute maximum free flow is more than 15.0 LPM
SAMPLING FLOW RATE	0.5LPM - 10 LPM with four glass Impinger
DIMENSION (LXBXH)	250mm X 310mm X 250mm
WEIGHT	About 3500 gm with battery
BATTERY	12.0 Volt DC, 7.5 Ah rechargeable
CHARGING TIME	Approximate 15 – 18 hours
SAMPLING TRAIN	Consisting of 4 No. 120ml Impinger
OPERATION TIME	Cover complete shift duty, say more than 8 Hrs. with full recharge
FLOW INDICATOR	Acrylic body rotameter ranging from 0.0 to 15.0 LPM, having 1.0 lpm graduation, all SS fitting like flow controller, back and bottom nozzle, & BFall type SS float
DIGITAL TIMER	Power - Battery Operated, 4 digit Red LED Running Time – 1 – 999.9 minute Delay time 1- 99.9 minute
WARRANTY	ALL VAIBHAV PRODUCT’S CARRY 14 MONTH WARRANTY

Additional Information

Product Code	VHS 23HF
Min. Order Quantity	1 Set(s)
Port	EX WORK AHMEDABAD
Payment Terms	L/C, D/P, T/T
Delivery Time	READY STOCK
Packaging Details	Standard Packing in Wooden Box with Inside Armor Sheet Packing and Bubble Roll Layer On Instrument

Special Features :

Sampler can run more than 12 hours on rechargeable maintenance free battery with 4 Nos. of 120ml glass impinger
Compact, Handy, portable & simple to operate with user friendly features
Digital Timer to Facilitate unattended operation
Maintain Sampling Rate throughout the sampling period.
Oil free, brushless, Less Noise Induction motor driven pump require zero maintenance.
Can be used as secondary suction device for Analyzer
Filter Holder is design to accept any standard 25mm dia filter
