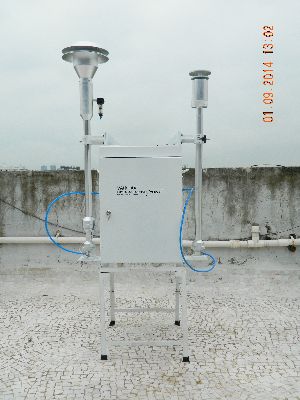

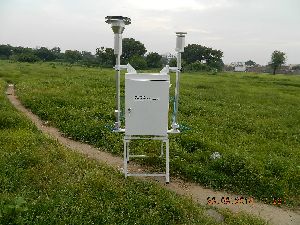

Combo Dust Sampler - VCDS 401

Specifications

Type	Dust Samplers
Weight	20-30kg, 29 KG
Voltage	220V
Condition	New
Features	Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty	14 MONTH
Display	Ananlog
Automation Grade	Manual, Semi Automatic
Brand Name	Vaibhav
Power	220 VC AC 50 Hz
Production Capacity	100 Set Per year
Airflow	PM 2.5 - 1.0 M3/HR, PM 10 - 2.3M3/HR
Dimension (LBH in mm)	540 X 480 X 480
Energy Consumption	Single Phase , 220V AVC, 2 AMP,
PM 2.5 Size Separator	: Two stage Impactor confirm to USEPA design, sample collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom of WINS IMPACTOR
PM 10 Size Separator	Single stage impactor matching to European Design (According to EN 12341), sample collected on standard glass micro fiber filter paper of 47mm diameter.
Filter Media	47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly.
Flow Rate (PM 2.5)	PM 2.5 at a constant 1m3/hour
Flow Rate (PM 10)	PM 10 at a constant 2.3m3/hour unaffected by voltage fluctuation and filter chocking through critical orifice
Flow Rate (GAS)	Gaseous Pollutant – Four inlet & one outlet with needle valves for flow control of each unit through 0.3 to 3.0 LPM acrylic body rotameter
Flow Meter	Independent Diaphragm gas meter for PM 2.5 & PM 10 record the total air volume sampled with a accuracy of 200 ML in each stream & acrylic body rotameter for gaseous pollutant sampling
Clock / Timer System	Programmable Real Time control system with control of automatic start & stop of instrument
Dimension & Weight	Dimension(mm) : LXBXH – 540X480X480 Weight : Approximate 29 Kg
Power Requirement	Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage.
Operation	Up-to 28 hours continuously
Time totalizer	0 to 9999.99 hours recorded on a digital time totalizer
Sampling Train	4 Nos. of 35ml borosilicate glass Impingers for gaseous sampling
WARRANTY	ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY

Additional Information

Product Code	VCDS 401
Min. Order Quantity	1 Set(s)
Port	EX WORK AHMEDABAD
Payment Terms	L/C, D/P, T/T, Other
Delivery Time	READY STOCK
Packaging Details	Standard Packing in Plastic Coated Hard Board with Inside Armor Sheet Protection and Bubble Roll Layer On Instrument

Special Features :

Simultaneous sampling of 9 parameters like PM 10, PM 2.5, gaseous pollutant & heavy metals
Oil free, brushless & Less Noise Induction motor driven pump assembly is immune to voltage fluctuation & require zero maintenance.
Sampling for PM10 & PM 2.5 dust are done at constant rate of 2.3m3/hr & 1m3/hr respectively reduce filter chocking even in areas of high PM concentration
Suitable for outdoor use with corrosion free lockable housing.
Sample can run continuously upto 24 hours as per Guidelines.
Filter Holder is design to accept any standard 47 mm dia filter which reduce the operating cost
Compact, portable & simple to operate with user friendly features
Available with NABL calibration certificate also
Folding Table will help to maintain the minimum height of inlet.
Compact and easy to handle due to reduction in weight.
Castor for easy movement and transportation
Digital Independent Filter Temperature & Ambient Temperature Indicator
